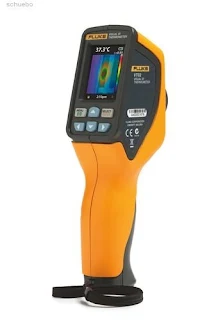

VT02 Visual IR Thermometer Thermal Camera




TOKO MARGA SETIA SURVEY
Berdagang alat- alat Kelautan, Alat Selam, Perahu Karet,Alat Keselamatan,
GPS Garmin, GPS Magellan, Alat Survey, Alat Ukur dan Aksesoris Alat Ukur.
Current Meter.Anemometer ,Anemometer Wireless,Weather station
Untuk keterangan, nego harga dan informasi produk lainnya, hubungi :
Name       : tatang survey
Alamat      : Jl .H.Kelik No.20 RT.03 / RW.08 Kelapa Dua Kebon Jeruk Jakarta Barat
Email        : tatangms409@gmail.com
Telp          : 082124100046

WhatsApp  :082124100046
  1. Measure with confidence

    Because traditional infrared thermometers only measure an average area, it is often impossible to accurately identify what you are actually measuring; with the Fluke VT02 Visual Thermometer you get the visual image of exactly what you are measuring.
  2. Detect issues instantaneously

    Lose the pen, paper, and clipboard, the Fluke VT02 saves a blended infrared and visual image with every image capture instantly! In one blended picture your customers get the complete picture and can compare readings from different dates which saves them valuable time and ultimately money.The Fluke VT02 has a NEAR/FAR feature that is not available on other products. The NEAR/FAR is exclusive to Fluke Visual IR Thermometers and allows the user to take simultaneous visual images with the thermal heat map images that are accurately aligned close in, ≤ 23 cm ( 9 in), with the NEAR feature, as well as beyond with the FAR feature. No other product can boast this NEAR visual and thermal heat map alignment feature that allows you to get close-in and document the exact location of the issue.



    Near ModeFar Mode
  3. Pinpoint with hot and cold markers

    Quick and easy detection with hot and cold trackers allow you to pinpoint the temperature source. When you see a hot or cold spot, you can save the image with the temperature reading and pinpoint the exact location using the blending between full thermal to full visual.
  4. Document problems with SmartView® software - a brilliant way to sell yourself

    Producing a professional report with Smartview® Software is just as powerful as the VT02 tool itself. Your customers will be able to communicate the issues that they've detected or document repairs that have been fixed.
  5. Troubleshoot efficiently

    The greatest technological advancement may be how Fluke has made it so simple to capture and blend images. Compact and intuitive, the Fluke VT02's point & shoot focus free design starts finding problems right out of the box with little to no training required.Expand diagnostic services with the Visual Infrared Thermometer. The first to find the problem is oftentimes the first in line to fix the problem. Telling someone they have a problem is not nearly as convincing as proving your point with a visual image blended with a thermal heat map. With the striking affordability of the VT02, your clients can add a high margin service and move from buying one thermal imager for their company to a business expanding tool for each associate.

Temperature
Temperature measurement range-10 °C to +250 °C (14 °F to 482 °F)
Temperature measurement accuracy±2°C or ±2% of reading in °C, whichever is the greater (at 25 °C nominal) as tested
On-screen emissivity correctionYes
On-screen reflected background temperature compensationYes
Imaging performance
Image capture frequency8 Hz
Detector typeUncooled Hyperthin Pyroelectric Ceramic
Infrared spectral band6.5 µm to 14 µm
Minimum focus distance50 cm (19.6 in)
Field of View20° X 20°
Image presentation
PalettesIronbow, Rainbow, Rainbow High Contrast, gray scale and inverted gray scale.
Level and spanAuto
Viewing optionsBlending of the visual and the infrared from full infrared to full visual in 25% steps.
Hot spot and cold spot trackingYes
Image capture and data storage
Image captureImage will freeze allowing review before saving.
Storage medium4 GB Micro SD card (stores well over 10,000 individual images).
File format.is2 format saved to SD card. When imported to included SmartView® reporting software user can create professional reports or images can be exported into multiple formats (BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF AND TIFF).
Memory reviewScroll through all saved images and view on screen.
General Specifications
Operating Temperature-10 °C to +45 °C (14 °F to 113 °F)
Storage Temperature-20 °C to +60 °C (-4 °F to 140 °F)
Relative humidity10 % to 90 % non-condensing
Display2.2 in diagonal
Controls and adjustmentsSelect color palette User selectable temperature scale (°F/°C) Time/date set Emissivity selection Reflected background temperature compensation
SoftwareSmartView® analysis and reporting software.
Batteries4 AA
Battery life8 hrs
Power savingPower down after 10 minutes of inactivity.
Electromagnetic compatibilityCE EN61326-1:2006
US FCCCFR47: 2009 Class A. Part 15 subpart B.
DropMIL-PRF-288000F; Class 2 section 4.5.5.4.2; 30cm
Size (H x W x L)21cm x 7.5cm x 5.5cm (8.3in x 3in x 2.2in)
Weight (battery included)385g (13.5 oz)
Warranty2 years

Customers spoke and we listened!

Our customers asked for a product as convenient as an infrared thermometer, as insightful as a thermal imager, with the visual context of a digital camera. Using hyper-thin pyroelectric technology, Fluke discovered a way to push the limits of this technology pioneering an array dense enough to create an infrared heat map. In the past, blending has been the exclusive territory of thermal imagers priced five to ten times higher, but not anymore. It's standard with your new visual thermometer.
75% Blended image50% Blended Image75% Blended image25% Blended Image
Visual inspection
No issues are obvious to naked eye
Traditional IR
thermometer

Optimized for single point measurements
Visual IR
thermometer

Visual and thermal blending provide context and instantly tells you the exact location
Full infrared only
thermal images

Challenging to see exact location without visual context
Traditional infrared thermometers may seem affordable and convenient, but they only show an average temperature of an area, and the farther away, the less accurate. Furthermore, IR thermometers require the tedious tasks of taking multiple grid readings and manually recording temperature measurements.
With the Fluke VT02 Visual Thermometer you get the visual image of exactly what you are measuring. So whether you are an electrician, electrical contractor, HVAC, industrial maintenance, automotive, or general maintenance, the Fluke VT02 Visual Thermometer will help you measure with confidence, diagnose problems instantly, and expand your business!
75% Blended image50% Blended Image25% Blended Image
25%
thermal blending
50%
thermal blending
75%
thermal blending
